single girder crane

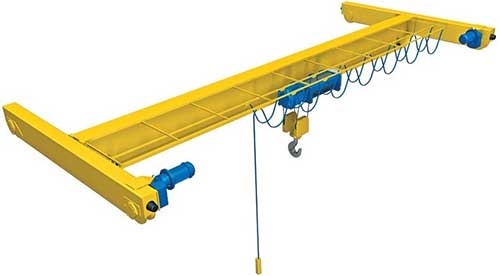

single girder crane manufacturer

what is single girder crane?

Single girder crane, as its name implied, has only a single girder, which is the most obvious difference with the double girder crane. Single girder crane is widely used in iron and steel metallurgy, electricity, water, aerospace, shipbuilding, automobiles, coal, petrochemicals, etc. We have LDP type electric single girder crane for low clearance, SL type single girder bridge crane for manual control, LDZ type single girder eot crane, LX type single girder eot suspension crane and LD type electric single-girder crane for electric control, etc. Each of TICO single girder crane is designed by heart for both your crane operator safety and further business profits.

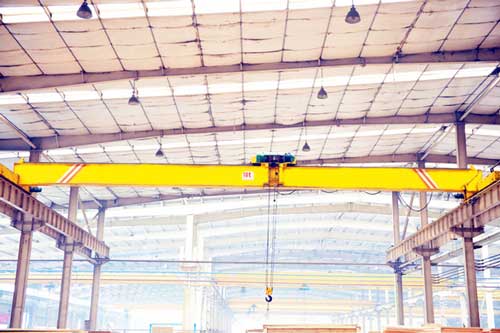

LDP type electric single girder crane

LDP type electric single girder crane

LDP type electric single girder crane is a super low clearance light crane, electric hoist on one side of the main beam, increasing hook service space, can reduce the factory height and cost. The product with large trolley track distance, smooth operation, compact structure, good rigidity, sensitive operation, low noise, safe, reliable, beautiful shape, widely used in the working environment temperature-20℃~+40℃, and the workshop's headroom is low and other places. Its rated load is 3T~10T span is 7.5M~22.5M, working grade is A3, A4 .

  • Working Environment Temperature: -20℃~+40℃
  • Rated Load: 3T~10T
  • Span: 7.5M~22.5M
  • Working Grade: A3, A4

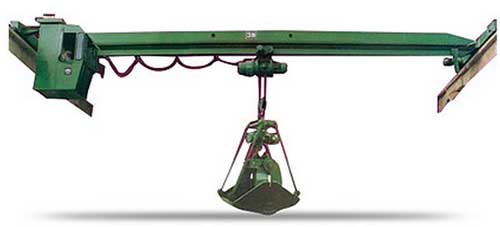

LDZ type single girder eot crane

LDZ type single girder eot crane
LDZ type single girder eot crane is a kind of single girder bridge crane controlled by electric. This single girder crane is a material handling equipment complement with grab electric hoist trolley working in the workshop. It is widely used in factories, warehouses and material hoist in various settings to handing bulk cargo. Rated lifting capacity is 2~10T, span is 4.5~28.5M, working environment is -20 c ~+40 c. LDZ type single girder eot crane is prohibited to work in the flammable, explosive, corrosive environment.

  • Lifting Capacity: 2~10T
  • Span: 4.5~28.5M
  • Working Environment Temperature: -20 c ~+40 c
  • Control: electric control

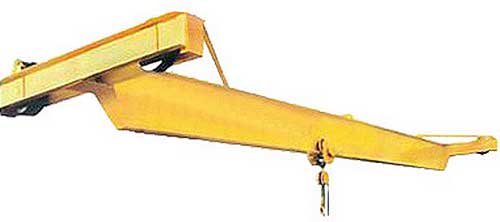

SL Manual single girder bridge crane

SL Manual single girder bridge crane
The rated capacity of SL manual single girder bridge crane is 0.5T~10T. It is widely used in warehouse, workshop with no power or equipment maintenance positions where has low handling volume, low speed, is used infrequently, and the running way is I beam. Working environment temperature of SL manual single girder bridge crane shall not be less than -20℃.

  • Weight: 0.5T~10T
  • Working Environment Temperature: above -20℃
  • Control: manual control

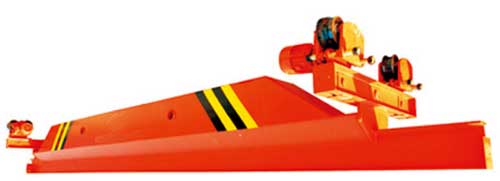

LX type single girder eot suspension crane

LX type single girder eot suspension crane
LX type single girder eot suspension crane is strictly accordance with the national standard design and manufacture and complement with CDI and MDI-electric hoist to be a small running light rail cranes with railway. The lifting weight is 0.5T-10, long-span is 3-16m, working grade is A3-A4, working environment temperature is -20-+40 degrees, prohibition working in the flammable, explosive and corrosive environments. Generally unloading and handling goods for workshop and warehouse. The operation method is divided into three forms: remote control, ground control and remote control & ground control.

  • Lifting Weight: 0.5T-10 T
  • Span: 3-16m
  • Working Environment Temperature: -20℃~+40℃
  • Control:electric control

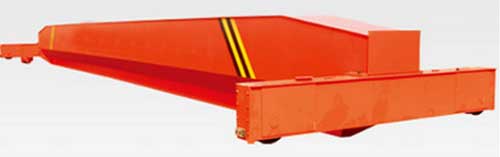

LD type single girder eot crane

LD type single girder eot crane
LD type single girder eot crane has the characteristics of reasonable structure, and strong machine rigidity. The lifting weight is 1T-20T, span is 7.5-28.5M, working grade is A3-A4, and working environment temperature is -20 ℃ ~ 40℃.

LD type single girder eot crane is widely used in factories, warehouses, different occasions to lift goods such as materials, prohibited used in flammable, explosive, corrosive environment. This kind of single girder bridge crane is operated with both ground control and cabin control. Cabinets are available in both open and closed environment, according to the actual condition to install two forms for left or right, respectively, and the get in the door direction divide in side and top two kinds to meet the needs of users in a variety of different choices.

  • Lifting Weight: 1T-20T
  • Span: 7.5m-28.5m
  • Working Environment Temperature: -20 ℃ ~ 40℃
  • Working Grade: A3-A4
  • Control: electric control

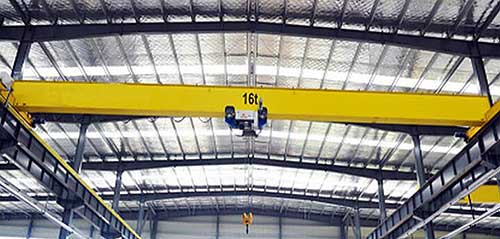

Single Girder Overhead Crane

Single Girder Overhead Crane
This kind of single girder crane is equipped with ND type steel wire rope electric hoist, the rated lifting capacity is 3.2t~16t, the working temperature is -25-40℃. It applied to machinery manufacture, metallurgy, petroleum, petrochemicals, ports, railway, civil aviation, electricity, food, paper, building material, electronic industry workshops, warehouses and other material handing application. Especially for the applications that require precise positioning of the material handing, large parts and precision assembly, etc.

With the world's advanced level technology, HD single girder overhead crane is designed in accordance with international standards: DIN (Germany), FEM (European), ISO (International), With the advantages of strong rigidity, light weight, and outstanding design structure, HD single girder overhead crane is your best choice for factory space saving, invest cost effective, and special traveling structure.

  • Lifting Capacity: 3.2t~16t
  • Working Temperature: -25℃~40℃
  • Standards: DIN, FEM, ISO
